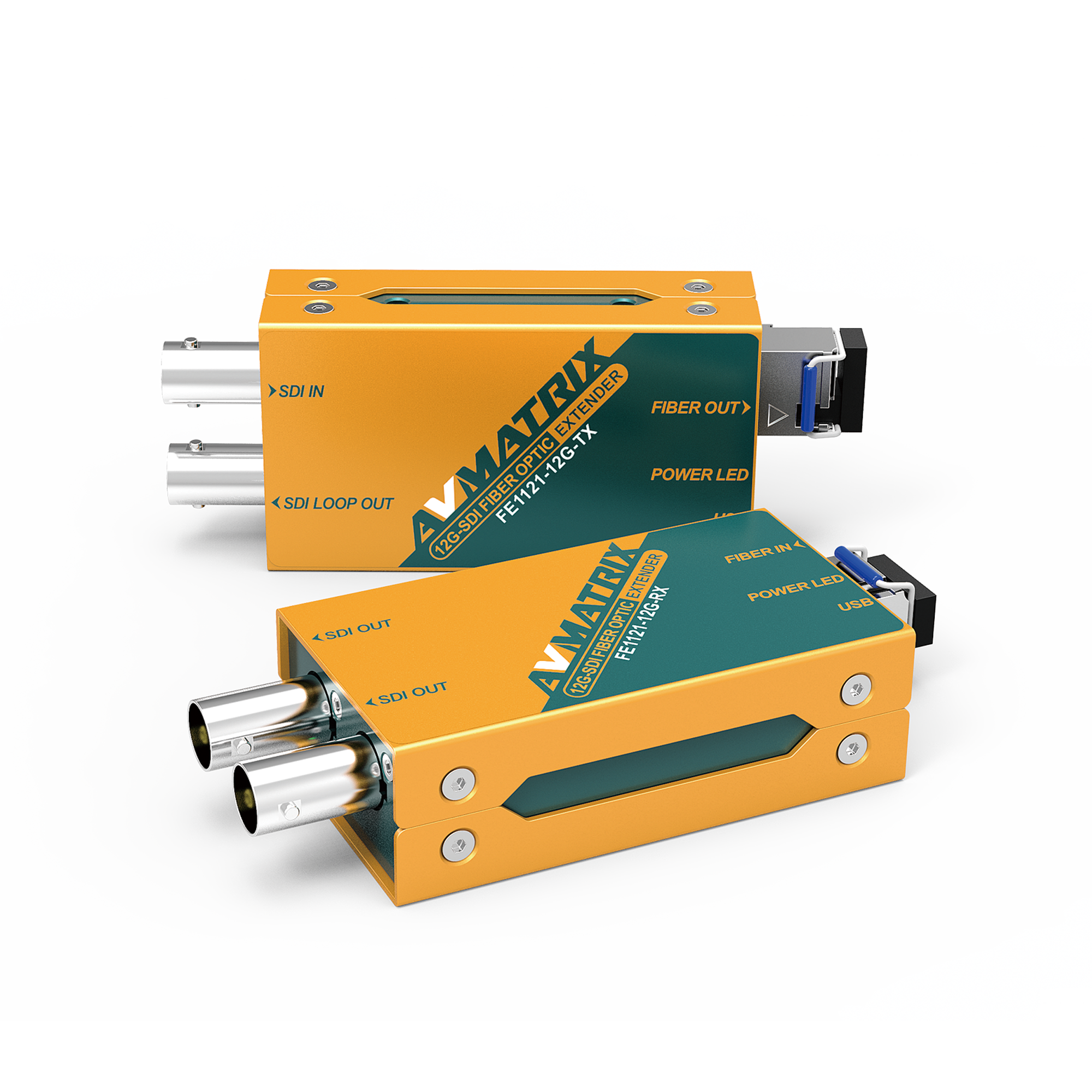

AVMATRIX FE1121 12G-SDI FIBER OPTIC EXTENDER

> 12G/6G/3G-SDI input & loopout on transmitter

  • Dual 12G-SDI outputs on receiver
  • Supports up to 12G bandwidth
  • SDI input automatic switching SD, HD, 3G, 6G, 12G-SDI
  • 10km transmission distance
  • SFP/ LC Fiber transmitter & receiver
  • SDI equalization and re-clocking
  • USB power supply
Categories: , ,

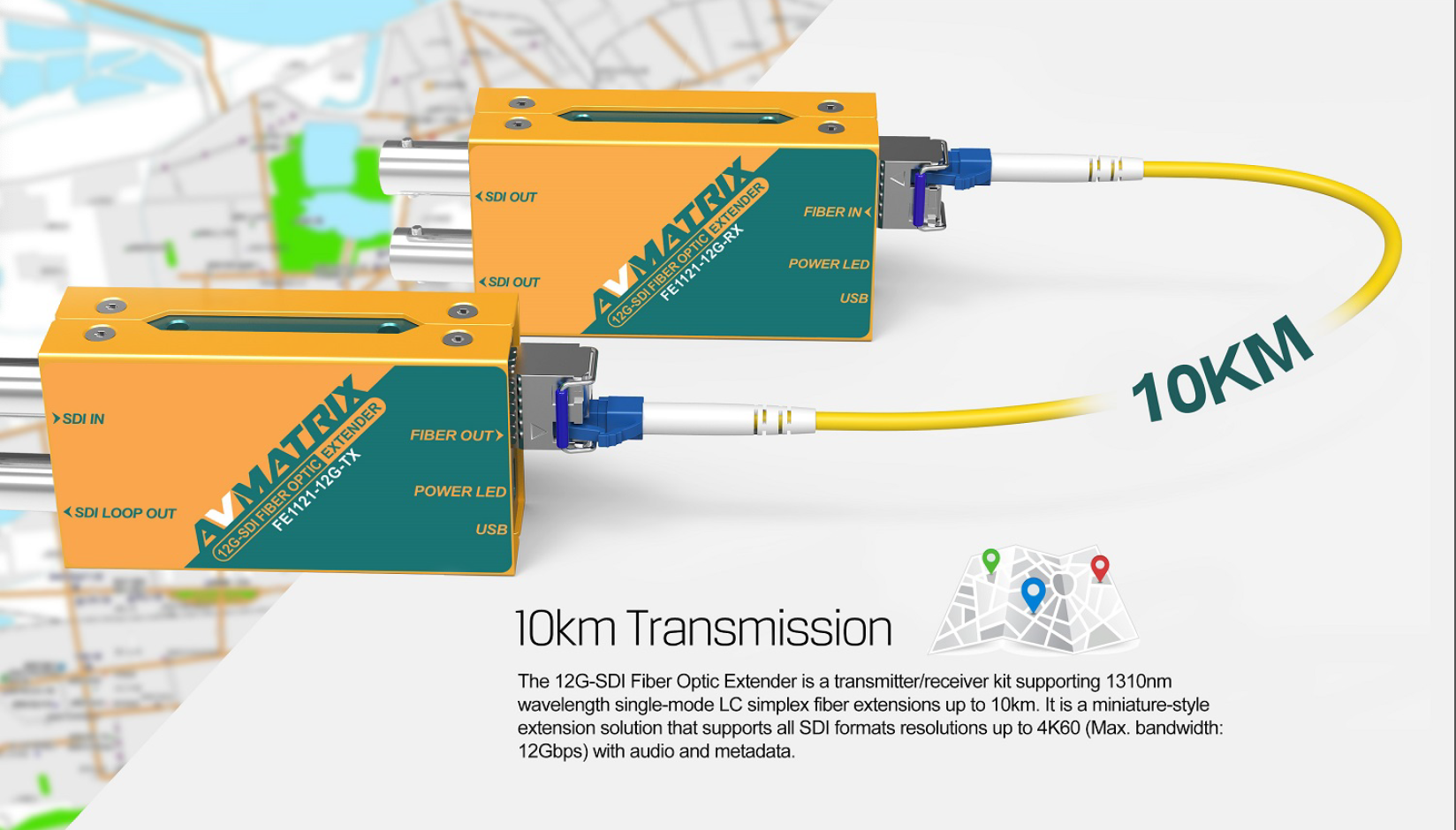

10km Transmission

The 12G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting 1310nm wavelength single-mode LC simplex fiber extensions up to 10km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 4K60 (Max. bandwidth:

12Gbps) with audio and metadata.
