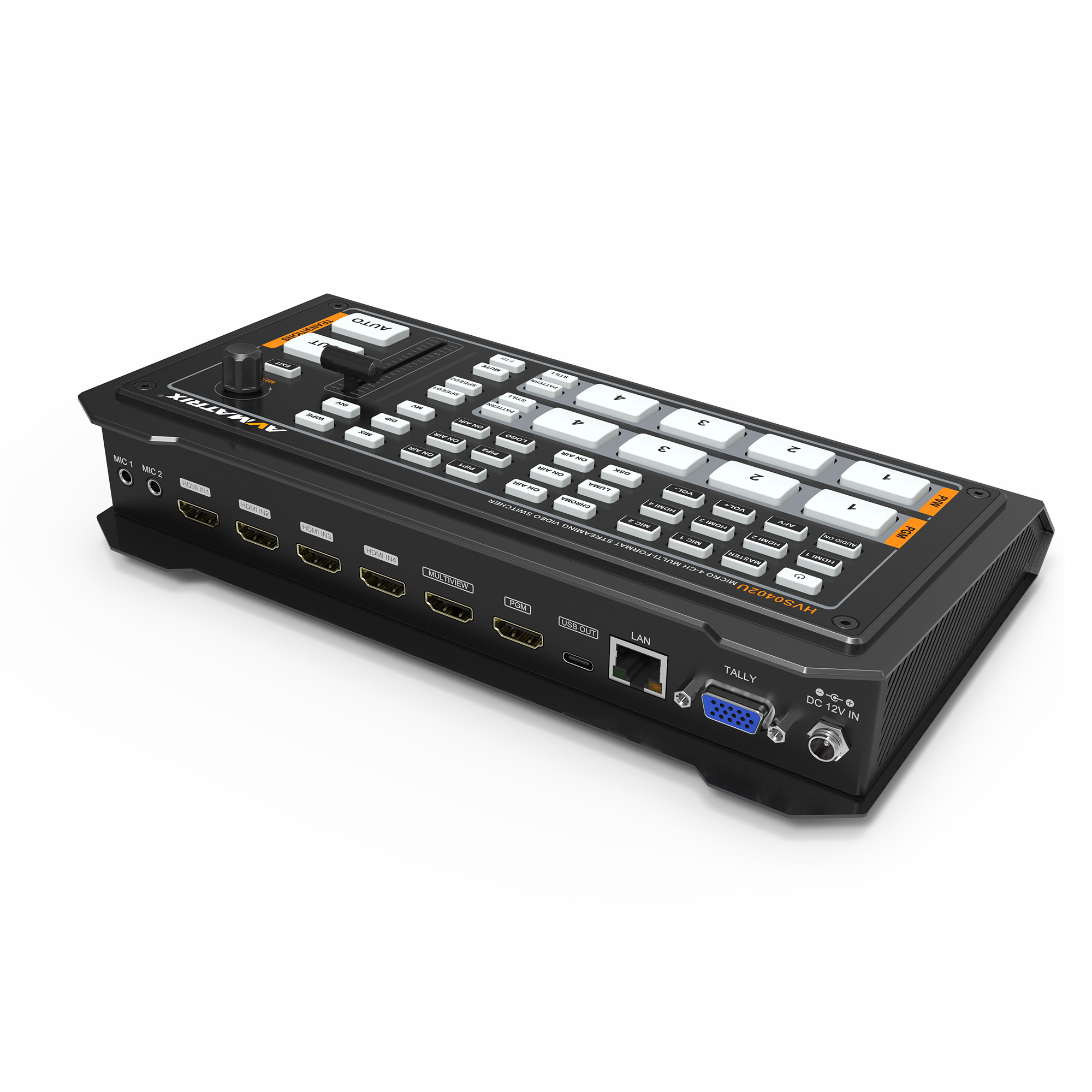

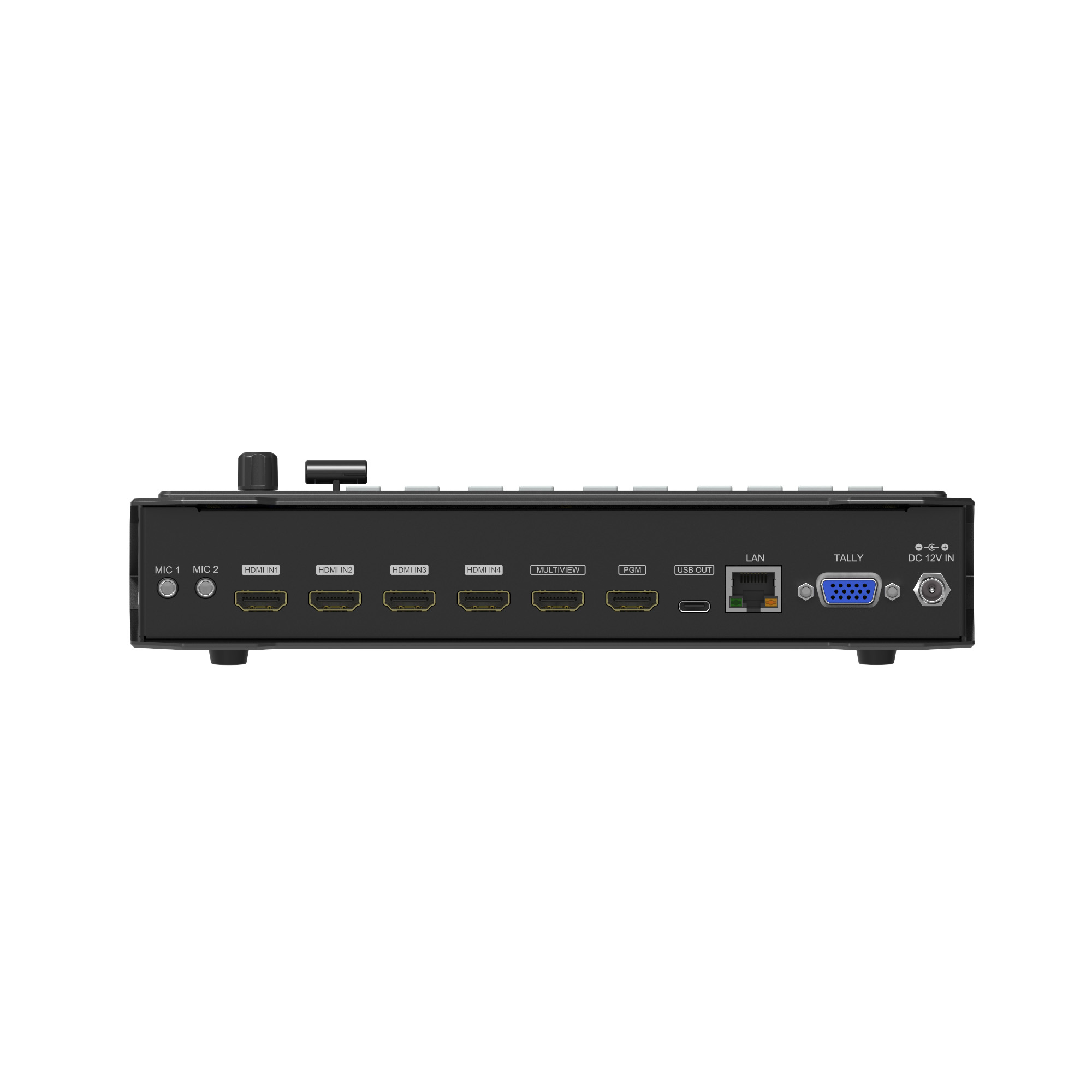

● 4 channel auto-detected HDMI inputs
● 1×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
● AUX output configurable and assignable
● USB for capturing and streaming on PC
● Clearly visible multiview & status page
● Upstream key: Luma key, Chroma key, PIP×2/ POP
● Downstream key and LOGO overlay
● T-bar/ Auto/ Cut transitions; various effects: WIPE(9×2 patterns) / MIX/ DIP
● Audio mixer: HDMI embedded audio and 2-Ch MIC/line In; audio delay available
● Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators
● LAN port for PC software remote control
● FTB/ MUTE/ STILL/ GPIO for tally
